Cisco ASA Hardware Health not detected in Orion
Resolve issue where Orion is not monitoring Cisco ASA Hardware Health Hardware Health Not detected list resources.
First published date
Last published date
Overview

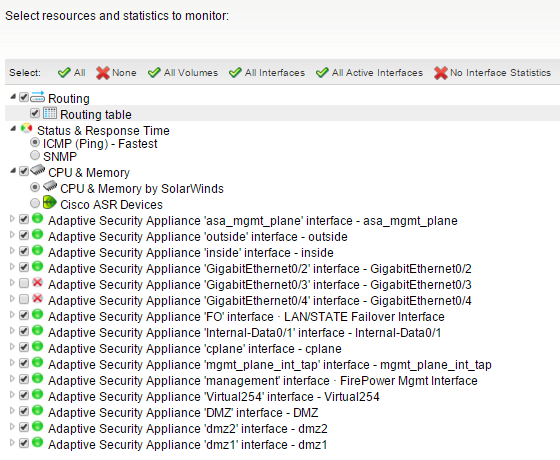

You are required to monitor Cisco ASA Hardware Health via Orion NPM and are unable to see Hardware Health option when doing list resources .
This article describes the issue when Orion is unable to monitor Cisco ASA Hardware Health.
You already ran SNMPWALK as per article Run SolarWinds SNMPWALK and able to see following OID's
Orion is not monitoring Cisco ASA Hardware Health OID's
Here are the OID related to temps
.3.6.1.2.1.47.1.1.1.1.2.7 = STRING: "Chassis Cooling Fan 1"
.1.3.6.1.2.1.47.1.1.1.1.2.8 = STRING: "Chassis Cooling Fan 1 Sensor"
.1.3.6.1.2.1.47.1.1.1.1.2.9 = STRING: "Chassis Cooling Fan 2"
.1.3.6.1.2.1.47.1.1.1.1.2.10 = STRING: "Chassis Cooling Fan 2 Sensor"
.1.3.6.1.2.1.47.1.1.1.1.2.11 = STRING: "Chassis Cooling Fan 3"
.1.3.6.1.2.1.47.1.1.1.1.2.12 = STRING: "Chassis Cooling Fan 3 Sensor"
.1.3.6.1.2.1.47.1.1.1.1.2.13 = STRING: "CPU Temperature 1 Sensor"
.1.3.6.1.2.1.47.1.1.1.1.2.14 = STRING: "Chassis Ambient Temperature 1 Sensor"
.1.3.6.1.2.1.47.1.1.1.1.2.15 = STRING: "Chassis Ambient Temperature 2 Sensor"
.1.3.6.1.2.1.47.1.1.1.1.2.16 = STRING: "Chassis Ambient Temperature 3 Sensor"
.1.3.6.1.2.1.47.1.1.1.1.7.7 = STRING: "Chassis Cooling Fan 1"
.1.3.6.1.2.1.47.1.1.1.1.7.8 = STRING: "Chassis Fan Sensor 1"
.1.3.6.1.2.1.47.1.1.1.1.7.9 = STRING: "Chassis Cooling Fan 2"
.1.3.6.1.2.1.47.1.1.1.1.7.10 = STRING: "Chassis Fan Sensor 2"
.1.3.6.1.2.1.47.1.1.1.1.7.11 = STRING: "Chassis Cooling Fan 3"
.1.3.6.1.2.1.47.1.1.1.1.7.12 = STRING: "Chassis Fan Sensor 3"
.1.3.6.1.2.1.47.1.1.1.1.7.13 = STRING: "CPU Temperature Sensor 0/0"
.1.3.6.1.2.1.47.1.1.1.1.7.14 = STRING: "Chassis Ambient Temperature Sensor 1"
.1.3.6.1.2.1.47.1.1.1.1.7.15 = STRING: "Chassis Ambient Temperature Sensor 2"
.1.3.6.1.2.1.47.1.1.1.1.7.16 = STRING: "Chassis Ambient Temperature Sensor 3"
.1.3.6.1.2.1.99.1.1.1.6.8 = STRING: "Chassis Cooling Fan"
.1.3.6.1.2.1.99.1.1.1.6.10 = STRING: "Chassis Cooling Fan"
.1.3.6.1.2.1.99.1.1.1.6.12 = STRING: "Chassis Cooling Fan"
.1.3.6.1.2.1.99.1.1.1.6.13 = STRING: "CPU Temperature Sensor"
.1.3.6.1.2.1.99.1.1.1.6.14 = STRING: "Chassis Ambient Temperature Sensor"
.1.3.6.1.2.1.99.1.1.1.6.15 = STRING: "Chassis Ambient Temperature Sensor"
.1.3.6.1.2.1.99.1.1.1.6.16 = STRING: "Chassis Ambient Temperature Sensor"
Product section
Cause
Currently we are only monitoring following Cisco OID's, Cisco ASA is not under the list below.
| MANUFACTURER | OID NAME | OID VALUE |
|---|---|---|
| Cisco | entSensorType | 1.3.6.1.4.1.9.9.91.1.1.1.1.1 |
| Cisco | ciscoEnvMonVoltageStatusDescr | 1.3.6.1.4.1.9.9.13.1.2.1.2 |
| Cisco | ciscoEnvMonTemperatureStatusDescr | 1.3.6.1.4.1.9.9.13.1.3.1.2 |
| Cisco | ciscoEnvMonFanStatusDescr | 1.3.6.1.4.1.9.9.13.1.4.1.2 |
| Cisco | ciscoEnvMonSupplyStatusDescr | 1.3.6.1.4.1.9.9.13.1.5.1.2 |
| Cisco | cefcFanTrayOperStatus | 1.3.6.1.4.1.9.9.117.1.4.1.1.1 |
| Cisco | cefcFRUPowerAdminStatus | 1.3.6.1.4.1.9.9.117.1.1.2.1.1 |
| Cisco | cefcFanTrayOperStatus | 1.3.6.1.4.1.9.9.117.1.4.1.1.1 |
| Cisco | cefcFRUPowerAdminStatus | 1.3.6.1.4.1.9.9.117.1.1.2.1.1 |
| Cisco | entitySensorValueTable | 1.3.6.1.4.1.9.9.91.1.1.1 |
| Cisco | entitySensorThresholdTable | 1.3.6.1.4.1.9.9.91.1.2.1 |
| Cisco | entPhysicalTable | 1.3.6.1.2.1.47.1.1.1 |
| Cisco | ciscoEnvMonVoltageStatusTable | 1.3.6.1.4.1.9.9.13.1.2 |
| Cisco | ciscoEnvMonTemperatureStatusTable | 1.3.6.1.4.1.9.9.13.1.3 |
| Cisco | ciscoEnvMonFanStatusTable | 1.3.6.1.4.1.9.9.13.1.4 |
| Cisco | ciscoEnvMonSupplyStatusTable | 1.3.6.1.4.1.9.9.13.1.5 |
| Cisco | cefcFanTrayStatusTable | 1.3.6.1.4.1.9.9.117.1.4.1 |
| Cisco | cefcFRUPowerStatusTable | 1.3.6.1.4.1.9.9.117.1.1.2 |
| Cisco | entPhysicalTable | 1.3.6.1.2.1.47.1.1.1 |
Resolution
ASAs don’t currently support envmonMIB, this is documented under the Cisco bug ID CSCuw47997.
If you require additional information on the status of the bug please contact Cisco and reference the bug ID.
Cisco Bug: CSCur55645 - Saleen: Add support for CISCO-ENTITY-SENSOR-EXT-MIB (© 2017 Cisco, available at https://www.cisco.com/, obtained on February 14, 2017.)
Last Modified
Nov 08, 2016
Product
Cisco ASA 5500-X Series Firewalls
Known Affected Releases
9.2(1)
Description (partial)
Symptom:
ASA does not update or return the correct values for CISCO-ENTITY-SENSOR-EXT-MIB OIDs.
This support was never added for the Saleen platforms
Conditions:
Cisco ASA running release 9.2.1
View Bug Details in Bug Search Tool Login Required Why Is Login Required?
Bug Details Include
Full Description (including symptoms, conditions and workarounds)
Status
Severity
Known Fixed Releases
Related Community Discussions
Number of Related Support Cases
Bug information is viewable for customers and partners who have a service contract. Registered users can view up to 200 bugs per month without a service contract.
Work around
Please see the post below from "Thwack"

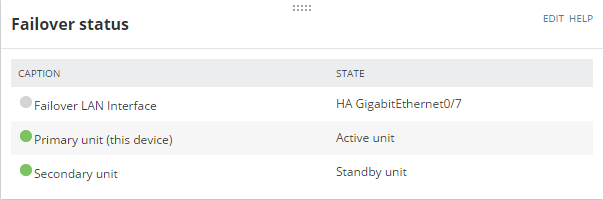

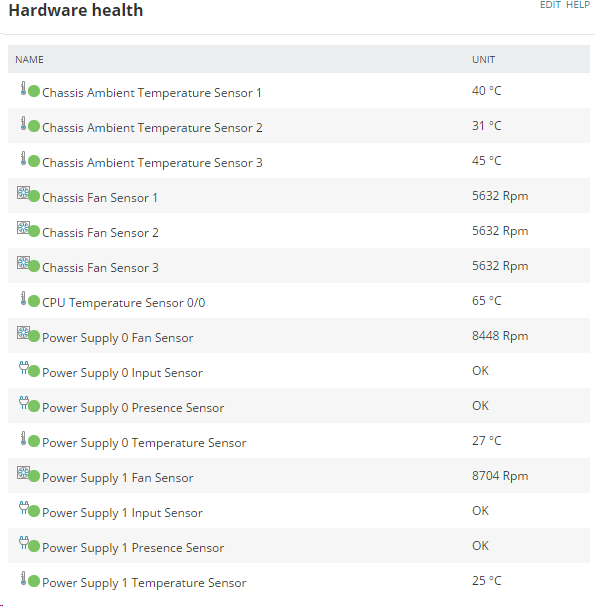

CISCO ASA HARDWARE HEALTH & FAILOVER STATUS MONITORING
https://thwack.solarwinds.com/docs/DOC-190948
For more details please see the below Thwack post
https://thwack.solarwinds.com/docs/DOC-190948
