Change the binding order of Network Adapters for Orion servers

10/16/2018 9:43 AM

11/28/2022 6:52 AM

This article provides information on how to change the binding order of Network Adapters used by an Orion server in order to reflect correct IP address in the Web console's Polling Engines section.

Network Performance Monitor

N/A

1. From your Orion server, Click Start > Run > type ncpa.cpl > then click OK.
   The available connections are shown in the LAN and High-Speed Internet section of the Network Connection window.

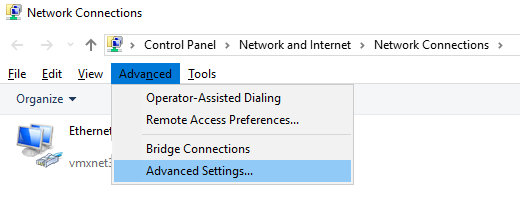

2. On the Advanced tab, click Advanced Settings and then click the Adapters and Bindings tab.(Screenshots property of © 2022 Microsoft )

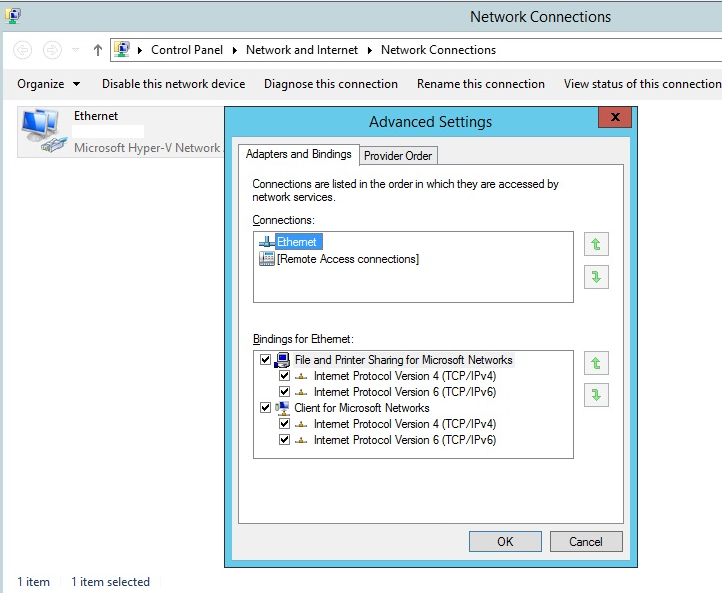

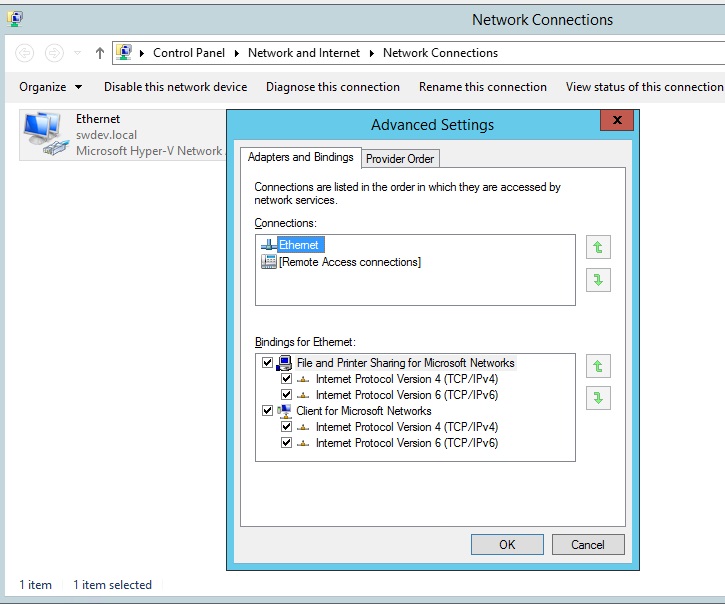

3. In the Connections area, select the connection that needs to be moved up in the list. Use the arrow buttons to move the connection.

(Screenshots property of © 2022 Microsoft )
Notes:

• The Adapters and Bindings tab lists the connections in order in which the connections are accessed by network services. The order of these connections reflects the order in which TCP/IP or the next available protocol is bound to the network adapters. The bindings for remote access connections apply to all remote access connections.
• The Provider Order tab lists the network providers for this computer. You can use the arrow buttons to change the order in which these providers are accessed. You can arrange the order in which the computer accesses information about the network. Providers and other connections are accessed in the order in which the providers and the connections are listed.

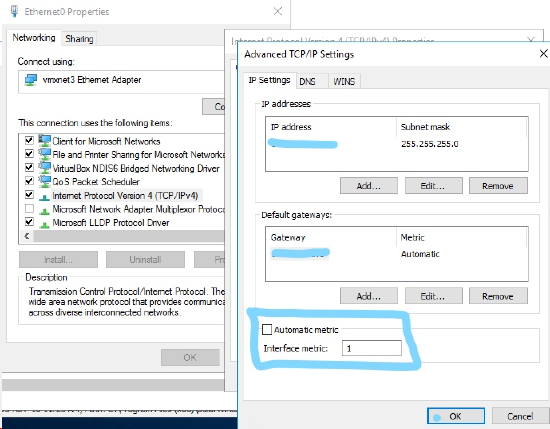

Additionally, you may need to go to properties of the NIC. Select TCP/IPV4 and properties. Uncheck automatic metric and put a 1 there.

After restarting Orion module engine, the correct IP address should appear in the engines table.



(Screenshots property of © 2022 Microsoft )
