Cattools backup of Cisco WLC using SSH

This article details how to back up a Cisco Wireless Controller using an SSH connection in Kiwi CatTools.

First published date

10/11/2018 1:32 AM

Last published date

6/29/2021 1:13 PM

Overview

This article shows you how to back up a Cisco Wireless Controller using an SSH connection in Kiwi CatTools.

Product section

Kiwi CatTools

Resolution

In the device information:

  1. Add a device to CatTools and open the Device info tab.
  2. Select Method as SSH2 or Cisco SSH.

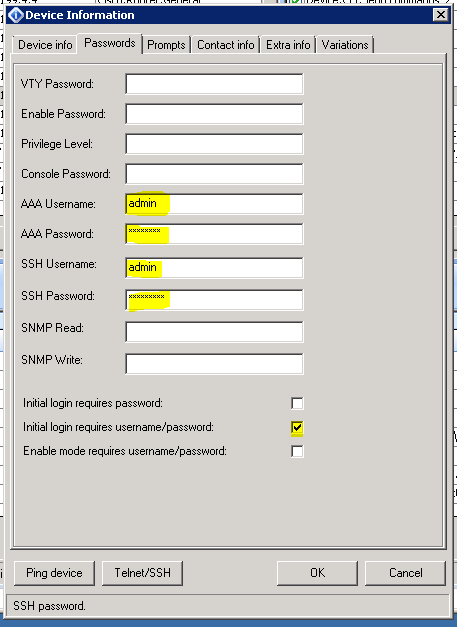

  3. Open the Passwords tab and enter the SSH and AAA usernames and passwords for the device.
  4. Check the Initial Login requires Username/password checkbox.
  5. Click OK.
