Cannot add WMI node in Orion platform - Test failed

Issue when trying to add a WMI based node, test fails as the credentials supplied do not have the required access. Test failed when adding a new node. New node in Orion not working. Cannot add a new node.

First published date

10/16/2018 4:39 PM

Last published date

11/19/2024 3:57 PM

Overview

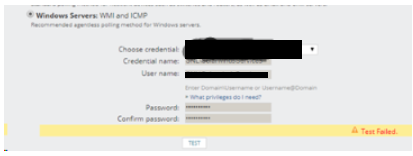

You are trying to add a Windows machine using WMI + ICMP polling method. When you click on Test Credentials you receive a Test Failed error message.


You are sure that you are using the correct username and password when you test the connection using wbemtest.exe, it is successful.

Product section

Orion Platform

Cause

  • Ensure that the user has entered the credentials correctly (i.e. domain/username) and WMI connectivity is open to the device.
  • Reverse DNS for the target node is not working as expected from Orion Server(or poller it is being added to).

Resolution

Resolution 1:

Test WMI connectivity outside of SolarWinds
  1. RDP to the polling engine that this was intended to be added for (usually the main polling engine).
  2. Click Start menu > type: wbemtest
  3. Open the utility.
  4. Click Connect...
  5. Enter the information
  • Within namespace, type: \\IP\root\cimv2  -  where IP is the actual IP that is failing in the Orion Web Console.
  • Within the Username, type in this format: domain\username
  • Enter the password as normal
  • Leave Authority blank.
  1. Click Connect
  2. Click Query
  3. Run the following 3 queries separately and let me know if you receive an error:
  • -- Scripts are not supported under any SolarWinds support program or service.
-- Scripts are provided AS IS without warranty of any kind. SolarWinds further
-- disclaims all warranties including, without limitation, any implied warranties
-- of merchantability or of fitness for a particular purpose. The risk arising
-- out of the use or performance of the scripts and documentation stays with you.
-- In no event shall SolarWinds or anyone else involved in the creation,
-- production, or delivery of the scripts be liable for any damages whatsoever
-- (including, without limitation, damages for loss of business profits, business
-- interruption, loss of business information, or other pecuniary loss) arising
-- out of the use of or inability to use the scripts or documentation.

SELECT * FROM Win32_Service
SELECT * FROM Win32_Process
SELECT * FROM Win32_PerfRawData_PerfProc_Process
If you receive an error at any point during these steps, you must consult with your system administration team or Microsoft Support. Wbemtest is a Windows utility that demonstrates WMI connectivity to other machines, it is a trustworthy tool that supports whether a node can be added into Orion.




Resolution 2:

SolarWinds performs a reverse DNS lookup on the target node before processing WMI queries. During the process, an erroneous interface might be preventing the registration of A record and associated PTR records. Ensure DNS resolution (Forward and Reverse) is working for the node in question.


Other likely causes for WMI communication problems include Port/Firewall restrictions on WMI/RPC ports.
