CBQoS Pre-Policy, Post-Policy and Drops resources show ‘No Data for Selected Time Period’

CBQoS Policy Details resource shows data correctly. Flow direction filter is Ingress.

First published date

1/20/2022 2:52 PM

Last published date

2/4/2022 2:59 PM

Overview

CBQoS is enabled and monitored for interfaces.
However, the widgets of CBQoS Drops and pre/post policy data for those interfaces are empty.

Product section

Netflow Traffic Analyzer

Cause

QoS is typically configured on interface output, that’s why CBQoS resources show no data when direction is ingress.

Resolution

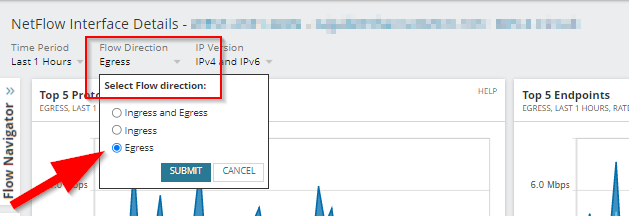

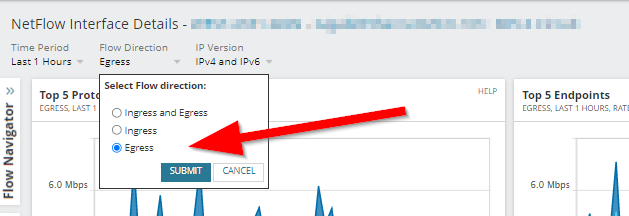

On the interface Details View, Select the "select Flow Direction" and Switch direction to Egress or Both.
CBQoS Policy Details resource always shows all policies and class maps regardless of the selected direction.
