Apply custom thresholds to volumes in the SolarWinds Platform

This article describes how to set custom thresholds to volumes for capacity planning.

First published date

10/24/2018 8:40 PM

Last published date

4/5/2022 8:51 PM

Overview

This article provides steps to set custom thresholds to volumes for capacity planning.

Product section

Network Performance Monitor

Resolution

Log in to the Web Console.
Open Manage Nodes.
Locate the Node to apply custom thresholds to your selected Volume.
Expand the Node to view Volume and Interface information.
1. Specific instructions for 2020.2 - To view this menu, select on the right side the Menu Commands > Switch back to Legacy Page, and now you will see the option as listed in the next steps.

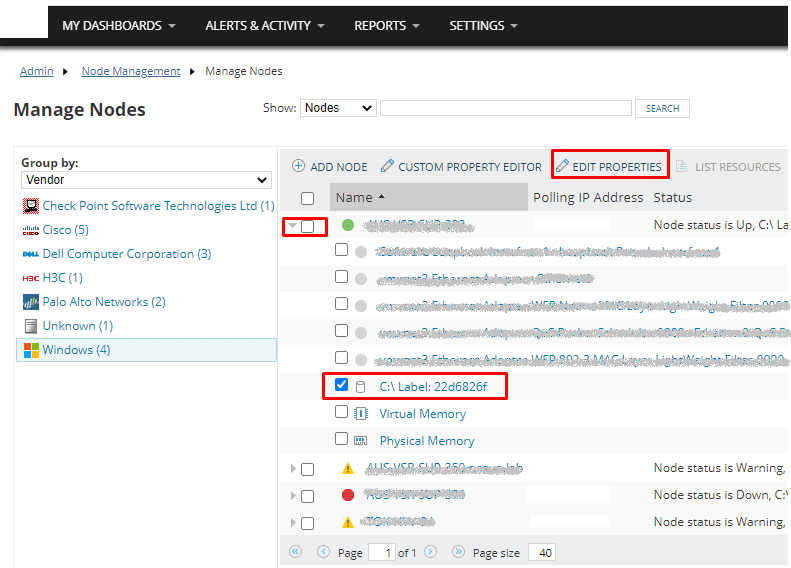

Select the Volume under the node, and then click Edit Properties.

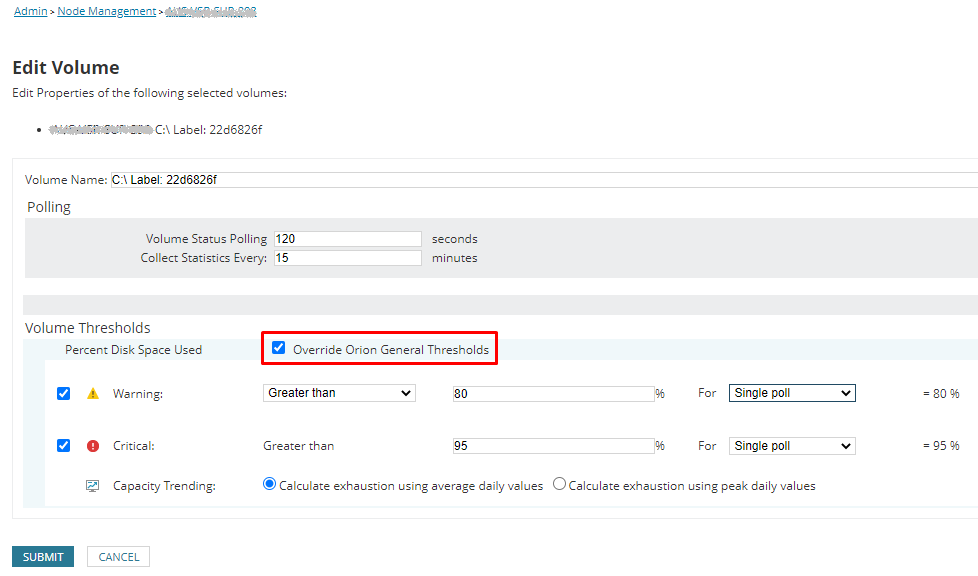

On the next page, select Override General Capacity Thresholds.
Click Submit.
