AlwaysOn Exception in 2023.3.1 (Error adding to dictionary with key)

7/18/2023 9:47 PM

2/6/2026 11:01 PM

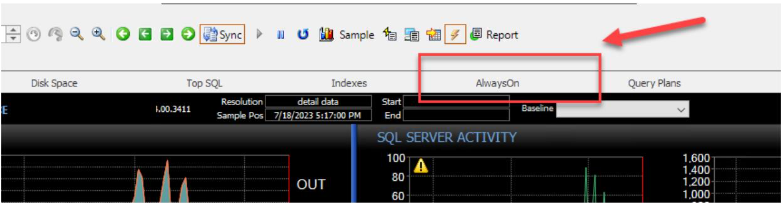

Post 2023.3.1 upgrade, the user navigates to the AlwaysOn tab for any given Target:

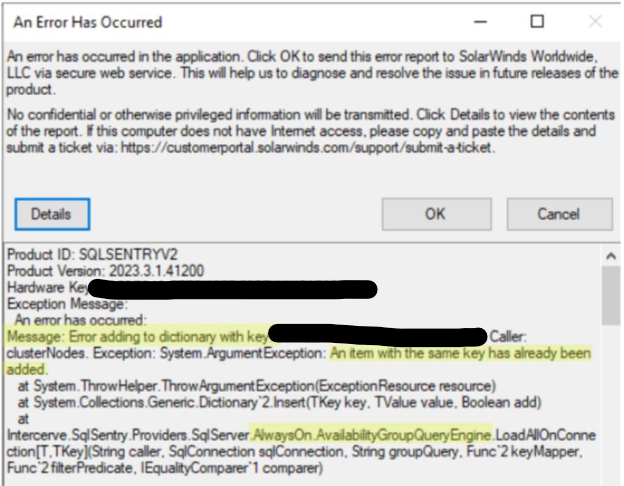

Upon doing so, an Exception is triggered upon doing so, and AlwaysOn data will not populate. The error will also appear in the System Status tab.

Message:
Error adding to dictionary with key: ONE-AG-TARGET.SQLSENTRY.COM

Stack Trace:
An error has occurred:
Message: Error adding to dictionary with key: ONE-AG-TARGET.SQLSENTRY.COM. Caller: clusterNodes. Exception: System.ArgumentException: An item with the same key has already been added.
at System.ThrowHelper.ThrowArgumentException(ExceptionResource resource)
at System.Collections.Generic.Dictionary`2.Insert(TKey key, TValue value, Boolean add)
at Intercerve.SqlSentry.Providers.SqlServer.AlwaysOn.AvailabilityGroupQueryEngine.LoadAllOnConnection[T,TKey](String caller, SqlConnection sqlConnection, String groupQuery, Func`2 keyMapper, Func`2 filterPredicate, IEqualityComparer`1 comparer)

System.InvalidOperationException: Error adding to dictionary with key: ONE-AG-TARGET.SQLSENTRY.COM. Caller: clusterNodes. Exception: System.ArgumentException: An item with the same key has already been added.
at System.ThrowHelper.ThrowArgumentException(ExceptionResource resource)
at System.Collections.Generic.Dictionary`2.Insert(TKey key, TValue value, Boolean add)
at Intercerve.SqlSentry.Providers.SqlServer.AlwaysOn.AvailabilityGroupQueryEngine.LoadAllOnConnection[T,TKey](String caller, SqlConnection sqlConnection, String groupQuery, Func`2 keyMapper, Func`2 filterPredicate, IEqualityComparer`1 comparer) ---> System.ArgumentException: An item with the same key has already been added.
at System.ThrowHelper.ThrowArgumentException(ExceptionResource resource)
at System.Collections.Generic.Dictionary`2.Insert(TKey key, TValue value, Boolean add)
at Intercerve.SqlSentry.Providers.SqlServer.AlwaysOn.AvailabilityGroupQueryEngine.LoadAllOnConnection[T,TKey](String caller, SqlConnection sqlConnection, String groupQuery, Func`2 keyMapper, Func`2 filterPredicate, IEqualityComparer`1 comparer)
--- End of inner exception stack trace ---
at Intercerve.SqlSentry.Providers.SqlServer.AlwaysOn.AvailabilityGroupQueryEngine.LoadAllOnConnection[T,TKey](String caller, SqlConnection sqlConnection, String groupQuery, Func`2 keyMapper, Func`2 filterPredicate, IEqualityComparer`1 comparer)
at Intercerve.SqlSentry.Providers.SqlServer.AlwaysOn.AvailabilityGroupQueryEngine.UpdateAvailabilityGroupTopology()
at Intercerve.SqlSentry.GUI.Controls.PerformanceAdvisor.AlwaysOn.AlwaysOnInstance.LoadThreadedDataInternal(GenericInfoReloadContext reloadContext)
at Intercerve.SqlSentry.GUI.Controls.GenericInfo.LoadDataLoop(Object state)

SQL Sentry (SQLS)

Changes implemented in 2023.3.1 to address bug 70256: “AlwaysOn Tab Blank due to Duplicate Clusters Names in Different Domains,” did not account for some additional cleanup/updates required in the database.

The below cleans up orphaned AG-related data still referencing the Simple Name, resolving the Dictionary/Duplicate Key Error, and allowing the AlwaysOn tab to populate.

1. Close the SQL Sentry Client.
2. Execute the below query against the SQL Sentry DB.
3. Re-open the SQL Sentry Client. It may take a few minutes for the errors to go away.



-- Scripts are not supported under any SolarWinds support program or service.
-- Scripts are provided AS IS without warranty of any kind. SolarWinds further
-- disclaims all warranties including, without limitation, any implied warranties
-- of merchantability or of fitness for a particular purpose. The risk arising
-- out of the use or performance of the scripts and documentation stays with you.
-- In no event shall SolarWinds or anyone else involved in the creation,
-- production, or delivery of the scripts be liable for any damages whatsoever
-- (including, without limitation, damages for loss of business profits, business
-- interruption, loss of business information, or other pecuniary loss) arising
-- out of the use of or inability to use the scripts or documentation.


DELETE FROM AlwaysOn.ClusterNode
WHERE ClusterID IN (
SELECT c1.ID
FROM AlwaysOn.Cluster c1
JOIN AlwaysOn.Cluster c2 ON c2.Name = c1.Name
WHERE c1.DomainName IS NULL AND c2.DomainName IS NOT NULL);

DELETE FROM c1
FROM AlwaysOn.Cluster c1
JOIN AlwaysOn.Cluster c2 ON c2.Name = c1.Name
WHERE c1.DomainName IS NULL AND c2.DomainName IS NOT NULL;
DELETE FROM cr1
FROM AlwaysOn.ClusterReference cr1
JOIN AlwaysOn.ClusterReference cr2 ON cr2.ClusterName = cr1.ClusterName
AND cr2.EventSourceConnectionID = cr1.EventSourceConnectionID
WHERE cr1.DomainName IS NULL AND cr2.DomainName IS NOT NULL;
