Network Management

"All alerts this object can trigger" widget is missing configured alerts

This article discusses how alerts are displayed on the 'All Alerts this object can trigger' widget. In some scenarios, the administrator is expecting to see a recently configured alert, certain alert objects that appear to be missing or no alerts appear at all when multiple alerts are assigned.

First published date

10/12/2018 10:33 AM

Last published date

3/12/2025 10:59 PM

Overview

Often customers are faced with the issue of not being able to see all configured alerts in the All alerts this object can trigger widget. This article will clearly explain when and under which circumstance the resource All alerts this object can trigger widget will display the alerts.

Product section

Network Performance Monitor

Resolution

This resource can be added to the following pages:

Node Details Page: displays only alerts triggered on the node object.
Interface Details Page: displays only alerts triggered on the interface object.
Volume Details Page: displays only alerts triggered on the volume object.

Note:

By default, this resource is added to the Node Details page.

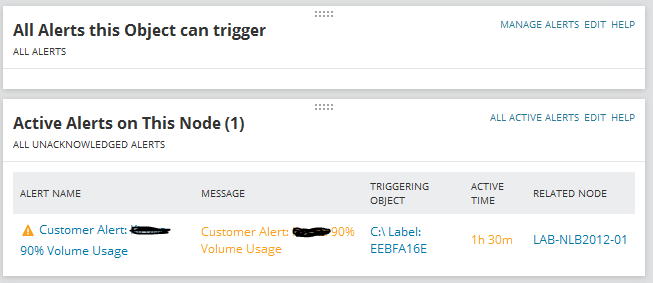

Conditions for Displaying Alerts in the Widget 'All Alerts This Object Can Trigger'

Although the name 'All Alerts This Object Can Trigger' suggests otherwise, this widget will display alerts only if any one of the following scenarios applies:

Scenario 1: Rule for Viewing Alerts for Nodes

All alerts on the node will be displayed.

Scenario 2: Rule for Viewing Alerts for Child Entities

By default, alerts cannot be viewed for child entities. However, if an alert was triggered in the past for any entity listed below, then an alert will be displayed in the resource.

Troubleshooting Alert Visibility Issues for Scenario 1 and Scenario 2

If you fulfill either Scenario 1 or Scenario 2, but you still cannot view the alert in the resource, then troubleshoot my triggering the alert.

Important

Creating an alert will not display them in the resource. They must be triggered.
