Adding subnets using Subnet Allocation Wizard on IPAM new GUI

Starting in IPAM 2025.2, a new GUI for IPAM was implemented, and the steps for adding subnets using "Subnet Allocation Wizard" are now different.

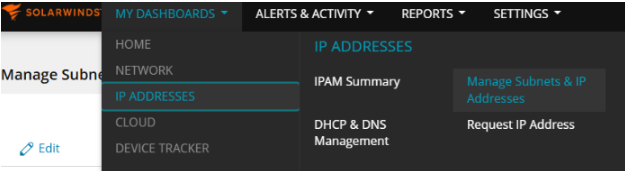

Step 1:

Click on MY DASHBOARDS > IP ADDRESSES, click "Manage Subnets & IP Addresses.

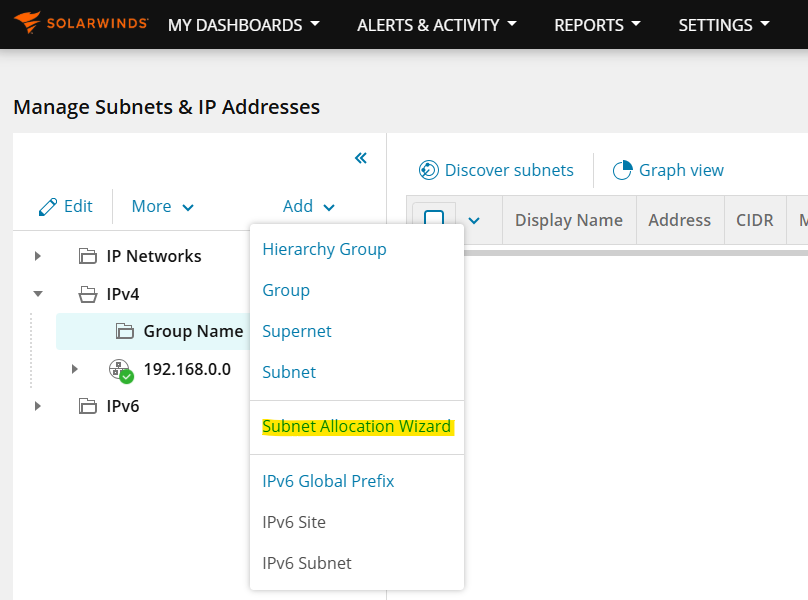

Step 2:

Pick the location where you would like to add the Subnets, it's either a group or supernet.

-Click Add and then pick Subnet Allocation Wizard.

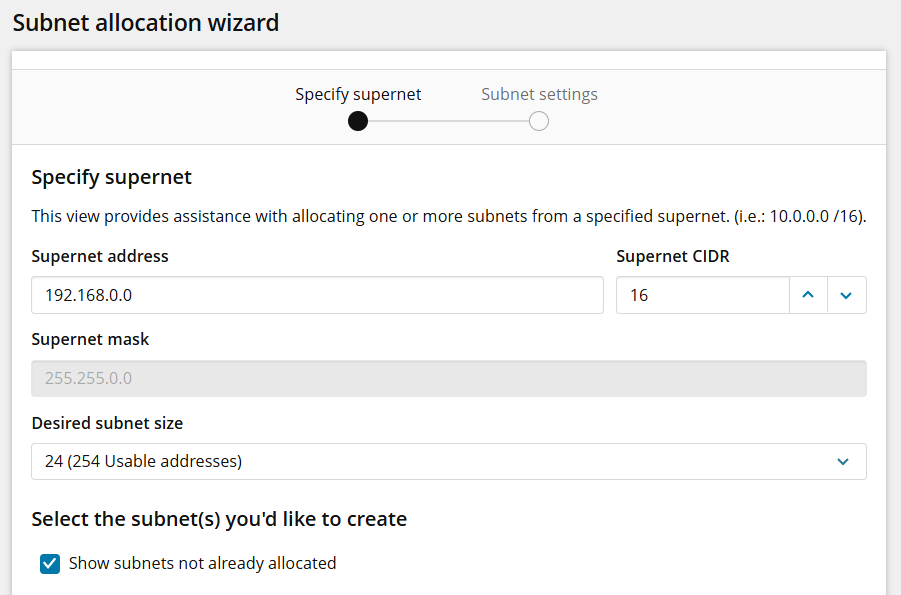

Step 3:

A new window will open where you will add the info.

-Add the needed information like Supernet address  / Supernet CIDR and Desired subnet size.

-Make sure that the checkbox for Show subnets not already allocated is checked.

-Pick the Desired subnet size.

Example: /24

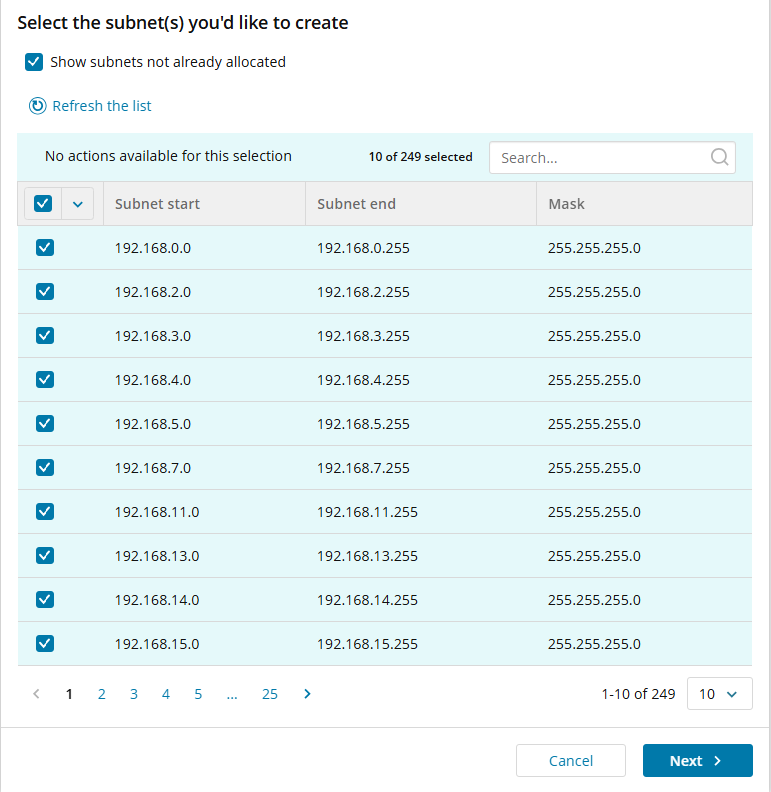

Step 4:

Click Refresh the list.

-Pick the subnets that you would like to add to the list.

-Click Next

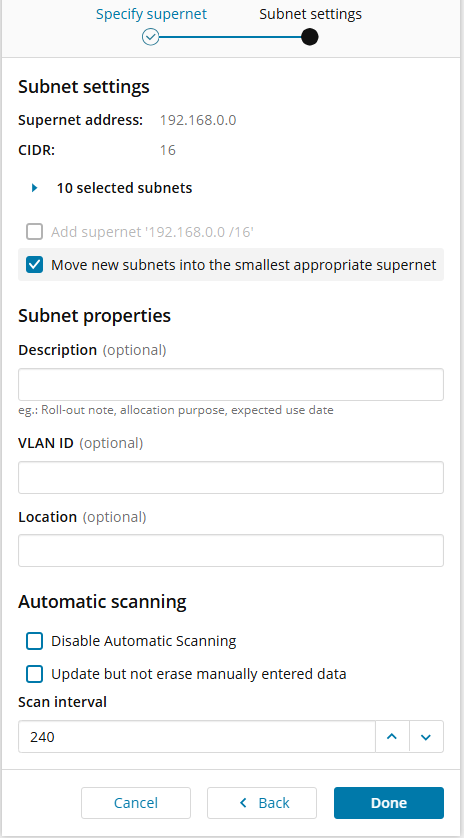

Step 5:

You can update the subnet properties.

-Description / VLAN ID / Automatic Scanning / Scan Interval.

-Click Done.

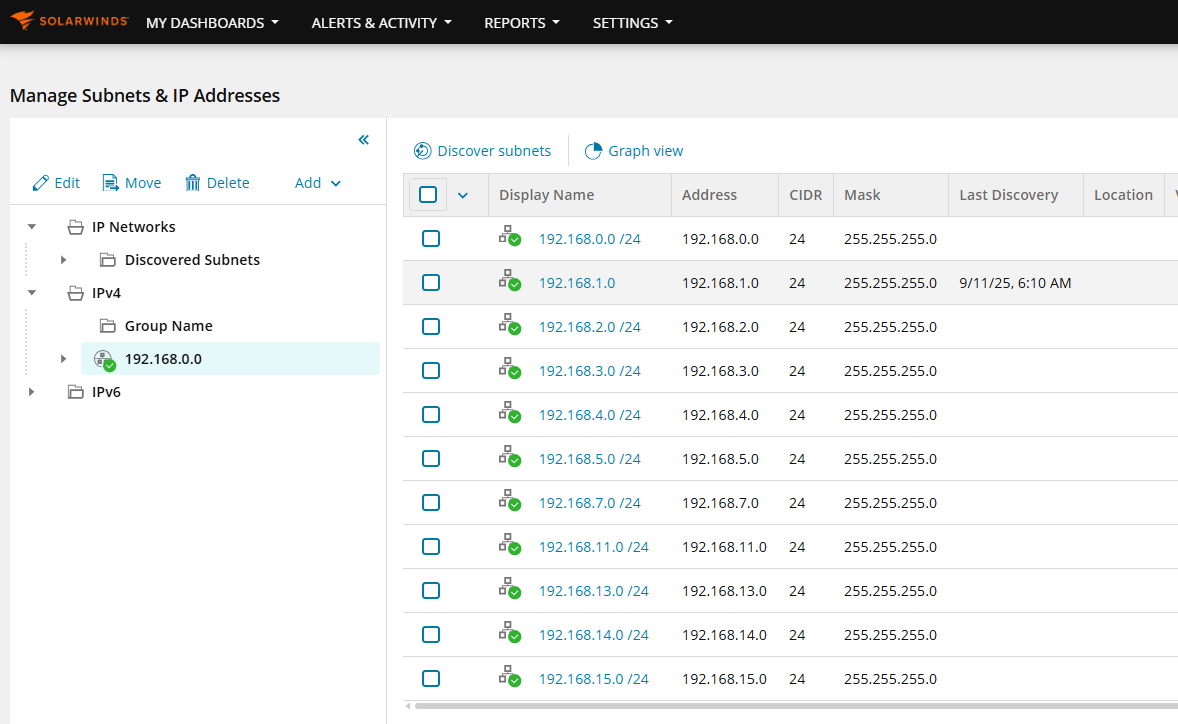

RESULT:
