Network Management

Adding subnets on IPAM new GUI

This article will show you the step-by-step process on how to add subnets to IPAM using the new GUI.

First published date

9/9/2025 3:13 PM

Last published date

9/9/2025 4:14 PM

Overview

Starting in IPAM 2025.2, a new GUI for IPAM was implemented, and the steps to add subnets are now different.

Product section

IP Address Manager

Resolution

Step 1:

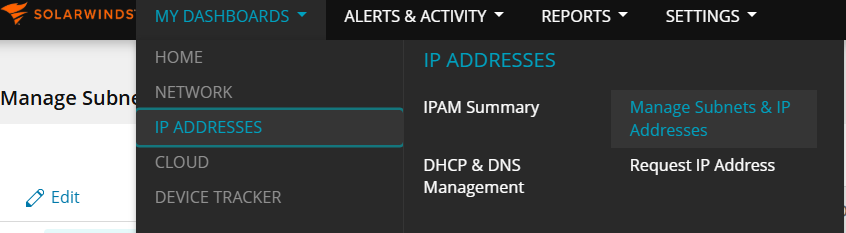

Click on MY DASHBOARDS > IP ADDRESSES, click "Manage Subnets & IP Addresses.



Step 2:

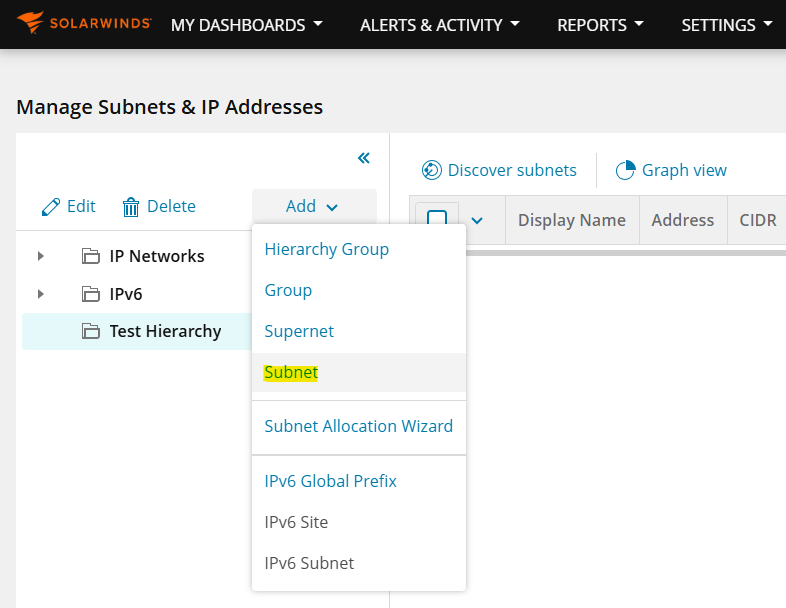

Pick the location where you would like to add the subnets.

-Click Add and then pick Subnet.

Step 3:

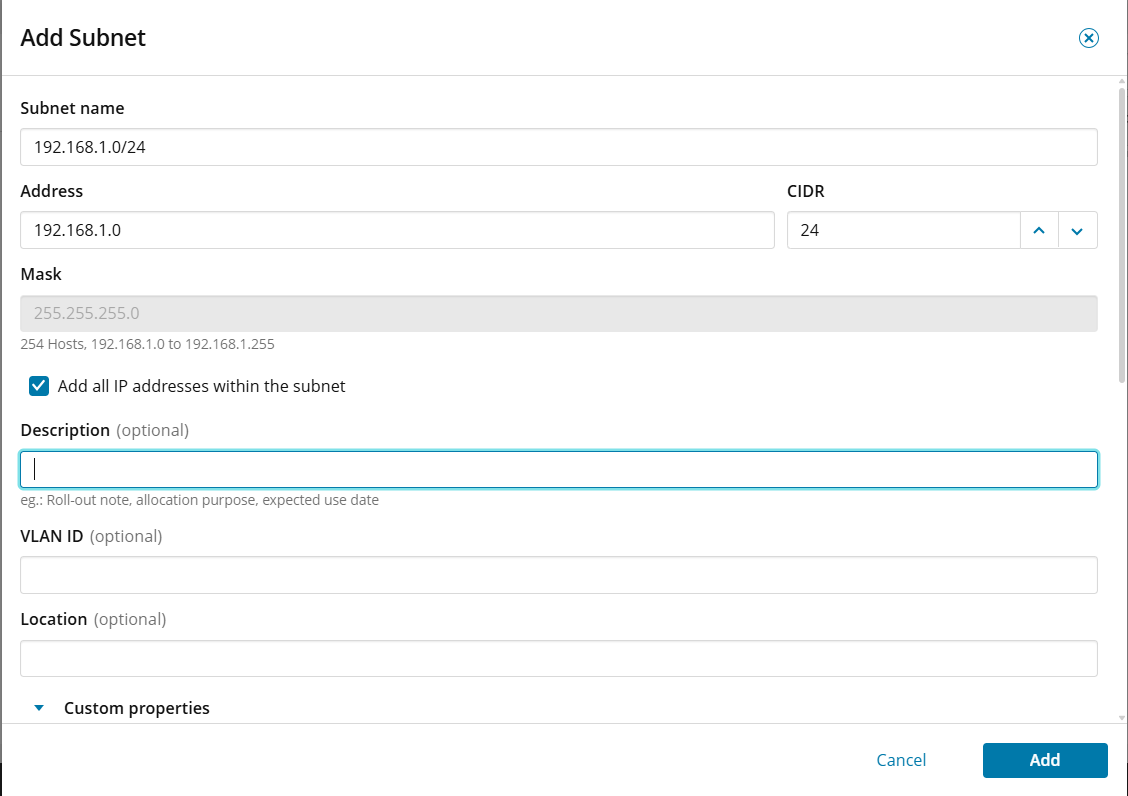

A new window will pop up where you will add the info.

-Add the needed information like Subnet Name / Addresses and CIDR.

-Other information is optional, like VLAN ID and Location.

-Click Add

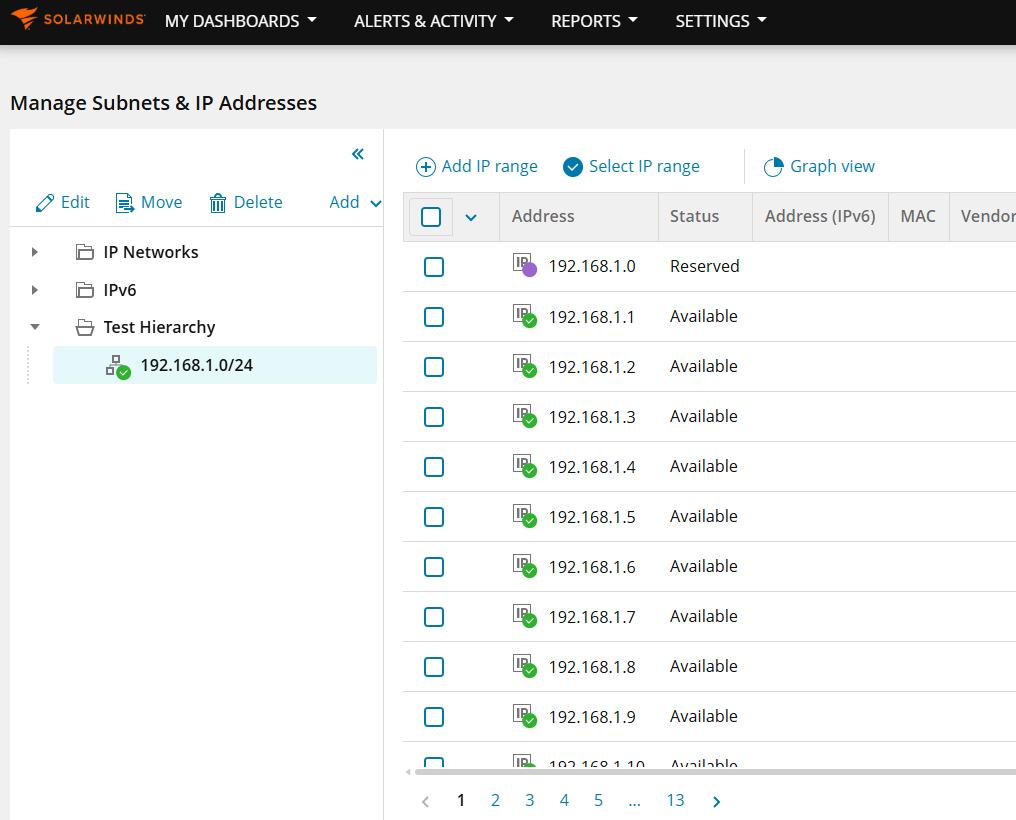

RESULT:
