API Poller Alert does not have a relationship with Nodes in SolarWinds Platform

There is no direct relationship between the Orion.ApiPoller.ApiPoller table and Orion.Nodes table.

First published date

11/21/2025 7:56 AM

Last published date

11/21/2025 6:48 PM

Overview

When creating an alert based on API Poller, there is no direct relationship between the Orion.ApiPoller.ApiPoller table and Orion.Nodes table.

Because of that, the entities available in the Alert Actions are very limited. It is not possible to select Custom Properties or Nodes as example.

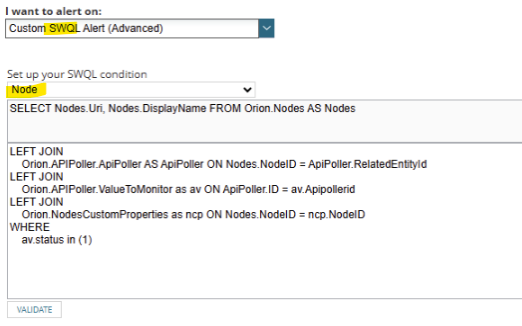

To overcome this limitation, as workaround, you can create an SWQL alert based on Nodes.

It is necessary to use LEFT JOIN to combine it to the APIPoller tables and CP tables (if using CP).

SELECT Nodes.Uri, Nodes.DisplayName FROM Orion.Nodes AS Nodes
LEFT JOIN
    Orion.APIPoller.ApiPoller AS ApiPoller ON Nodes.NodeID = ApiPoller.RelatedEntityId
LEFT JOIN
    Orion.APIPoller.ValueToMonitor as av ON ApiPoller.ID = av.Apipollerid
LEFT JOIN
    Orion.NodesCustomProperties as ncp ON Nodes.NodeID = ncp.NodeID
WHERE
    av.status in (1)



Product section

Orion Platform

Cause

API Poller based alerts do not have a native relationship with the Orion.ApiPoller.ApiPoller and Orion.Nodes tables, which limits the fields available in Alert Actions.

Resolution

Because API Poller alerts do not have a direct relationship to Nodes, Node fields and Custom Properties cannot be referenced in Alert Actions by default.
To work around this limitation, you can manually pull the needed Node and Custom Property details using a SQL query inside the Alert Action (Email/Event). This approach allows the alert to return a single combined output that includes API Poller information and Node details, even though they are not natively linked.

Use the following query In Alert Actions (Event / Email):

${SQL: SELECT
    CONCAT(
    'Api ID: ', ap.ID,
    '| Api Name: ', ap.Name,
    '| Node ID: ', Nodes.NodeID,
    '| Node Name: ', Nodes.Caption,
    '| CP_NodeOwner: ', ncp.CP_NodeOwner,
    '| CP_NodeTeamRep: ', ncp.CP_NodeTeamRep)
    as Details

FROM
    NodesData as Nodes
LEFT JOIN
    APIPoller_ApiPoller AS ap ON Nodes.NodeID = ap.RelatedEntityId
LEFT JOIN
    APIPoller_RequestDetails as r ON ap.ID = r.APIPollerID
LEFT JOIN
    APIPoller_ValueToMonitor as av ON r.ID = av.RequestDetailsID
LEFT JOIN
    NodesCustomProperties as ncp ON Nodes.NodeID = ncp.NodeID
WHERE
Nodes.NodeID = ${NodeID}}

Note:

  • CONCAT is required because Alert Actions allow returning only a single DB cell.

  • LEFT JOIN is used so the alert can retrieve information across all related API Poller and Custom Properties tables
