NPM Website Error "Guid should contain 32 digits with 4 dashes Couldn't store <selectItem> in RefID Column. Expected type is Guid."

This article describes how to resolve the following error that appears when a web-based report is modified or created in NPM: Unexpected Website Error GUID should contain 32 digits with 4 dashes (xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx). Couldn't store <selectItem> in RefID Column. The expected type is GUID.

First published date

10/9/2018 12:24 PM

Last published date

2/3/2022 5:19 PM

Overview

This article describes how to resolve the following error that appears when a web-based report is modified or created in NPM:

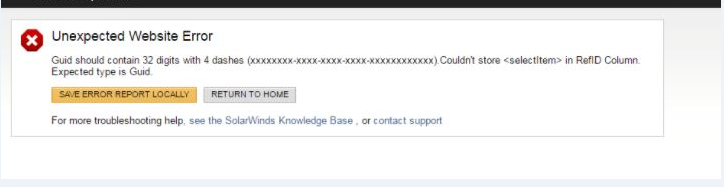

Unexpected Website Error
Guid should contain 32 digits with 4 dashes (xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx). Couldn't store <selectItem> in RefID Column. Expected type is Guid.

Product section

Network Performance Monitor

Cause

The Web Console automatically adds an empty or false 'Group results by:' or 'Sort results by:' options the next time the user clicks the mouse anywhere. This occurs when adding columns to a web-based report and the user clicks Submit before removing the empty or false box.

Resolution

  1. On the Orion Web Console, go to Reports > Manage Reports.
  2. In the Group by menu, select Report Origin > Web-based.
  3. Select the report and click Edit Report.

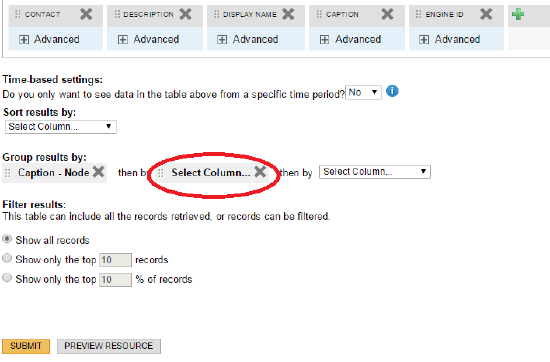

  4. After the 'Group results by:' or 'Sort results by:' options are displayed, click on any empty space. The empty/false box should appear.
  5. Delete the empty/false box.
  6. Click Submit.
