Serial Number Service Tag and Model Information Report

7/9/2019 7:58 PM

12/1/2025 5:05 PM

Network Performance Monitor

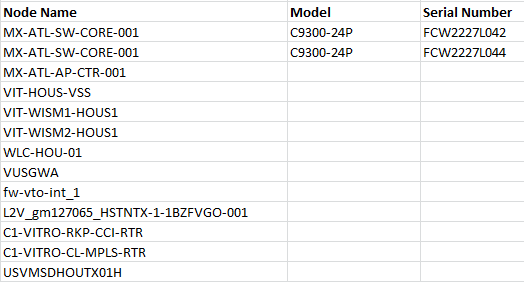

You must create a custom report that brings the information of the HWH_HardwareInfo ID and HWH_HardwareInfo NetObjectID

The table containing the Model and Service Tag information is HWH_HardwareInfo

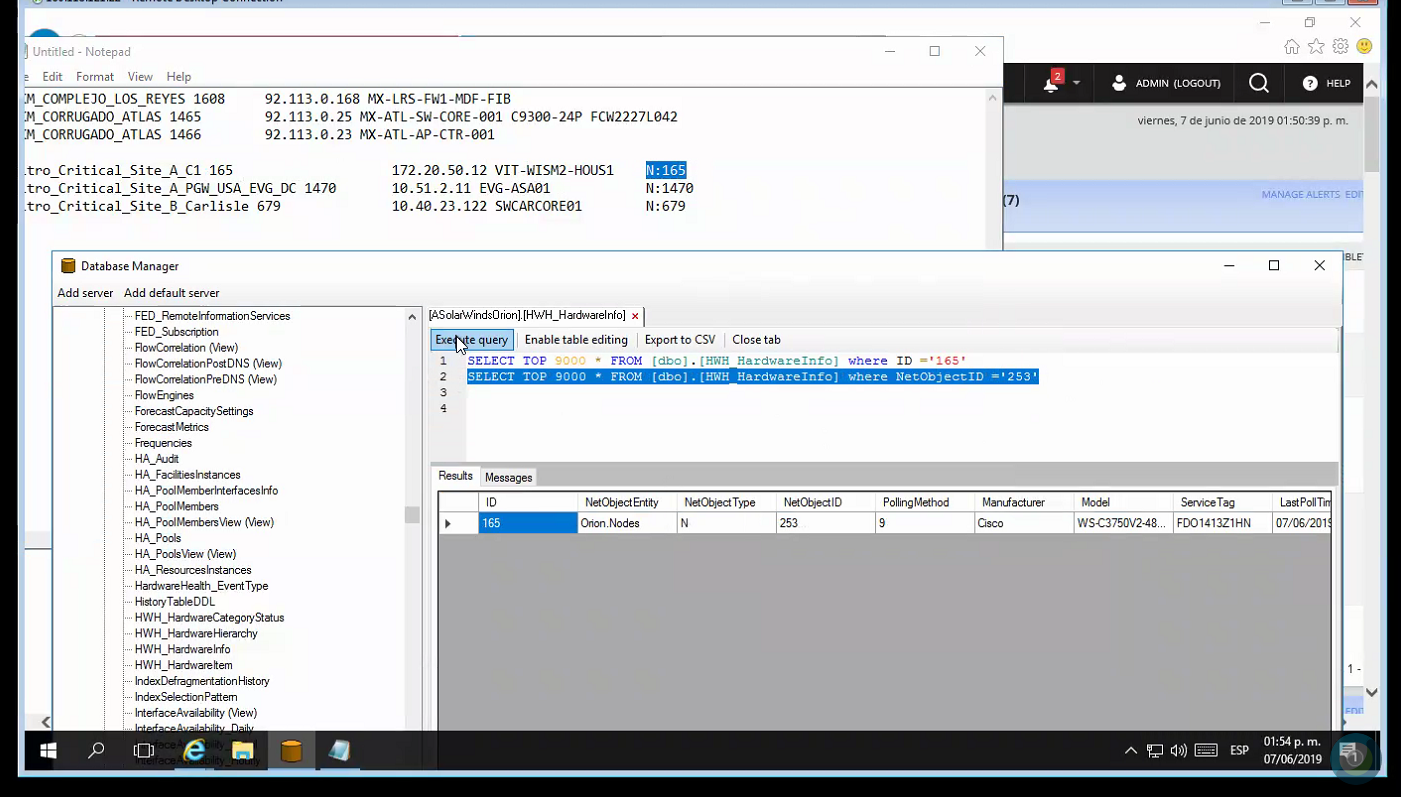

Query example:

-- Scripts are not supported under any SolarWinds support program or service.
-- Scripts are provided AS IS without warranty of any kind. SolarWinds further
-- disclaims all warranties including, without limitation, any implied warranties
-- of merchantability or of fitness for a particular purpose. The risk arising
-- out of the use or performance of the scripts and documentation stays with you.
-- In no event shall SolarWinds or anyone else involved in the creation,
-- production, or delivery of the scripts be liable for any damages whatsoever
-- (including, without limitation, damages for loss of business profits, business
-- interruption, loss of business information, or other pecuniary loss) arising
-- out of the use of or inability to use the scripts or documentation.

SELECT TOP 1000 * FROM [dbo].[HWH_HardwareInfo] where ID = '165'
SELECT TOP 1000 * FROM [dbo].[HWH_HardwareInfo] where NetObjectID = '253'

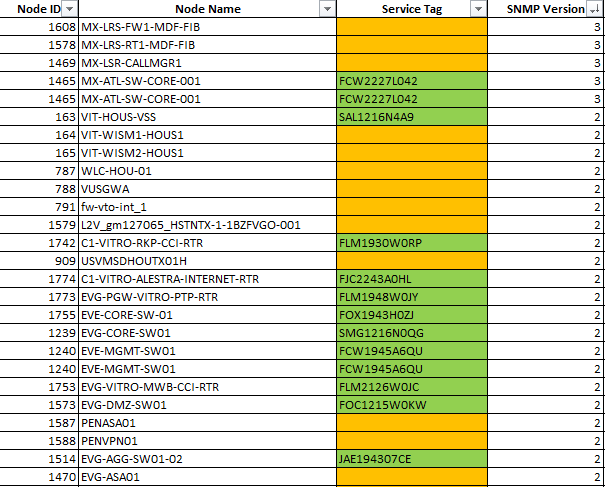

Not all the nodes are returning the Service Tag Information:



SolarWinds collect the Serial Number, Service Tag and Model via SNMP, if the information is missing from SNMP you must create a Universal Device Poller (UNDP)

Resources:

• Create a Universal Device Poller and report on Cisco serial numbers
• Service Tag data in Orion database
• How to Create a Custom SQL Report in the Orion Web Console
