Network Management

Last 7 Days report giving duplicate node listed

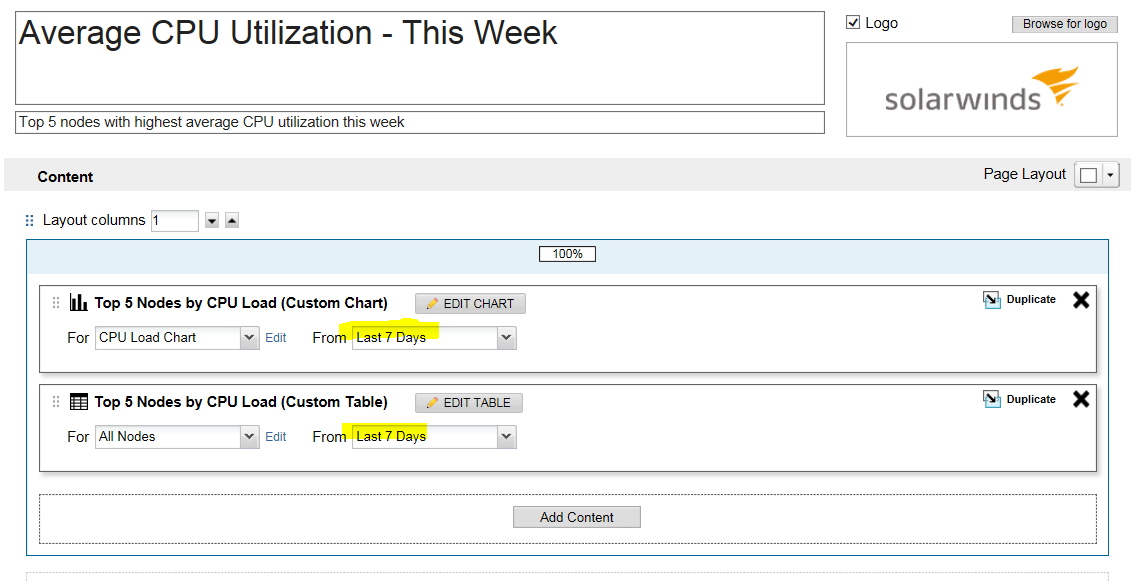

This article describes the issue when you modify Last Week report to Last 7 days and you get questionable results. When you run the report, the Graph portion (Custom Chart) appears to work correctly showing the top 5 nodes CPU average graphed for the last 7 days, but you get unexpected results for the Average CPU load percentages below the graph.

First published date

10/19/2018 8:45 PM

Last published date

8/27/2019 3:10 PM

Overview

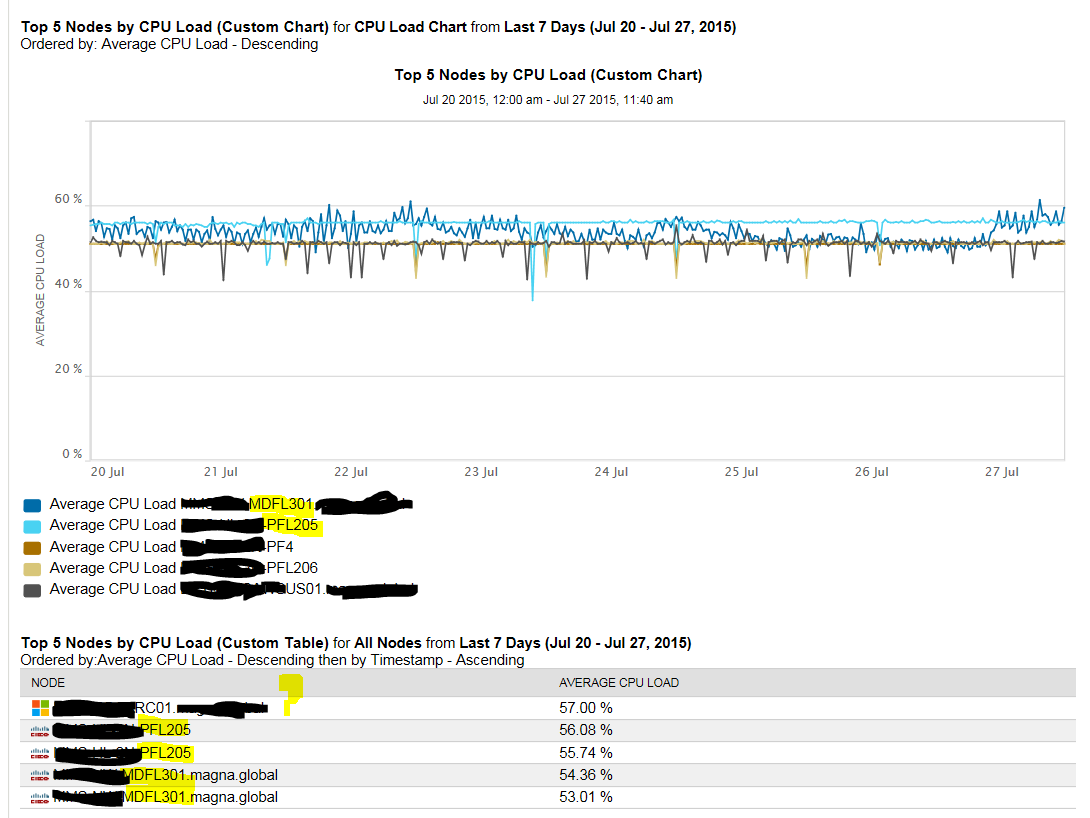

If you run the report for Last 7 days or last week, it returns with two entries per node reporting on. It sometimes comes in with different values as well.

Product section

Network Performance Monitor

Cause

This is caused by TimeStamp Column which is filtering information incorrectly.

Resolution

1. Edit report.

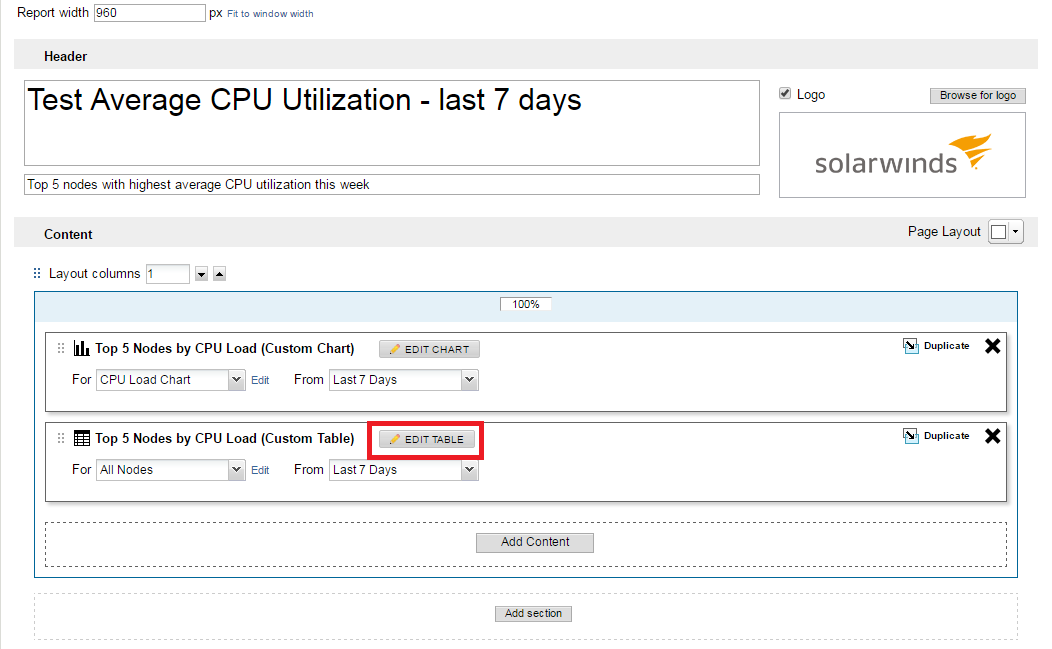

2. Click Edit Table in Content area.

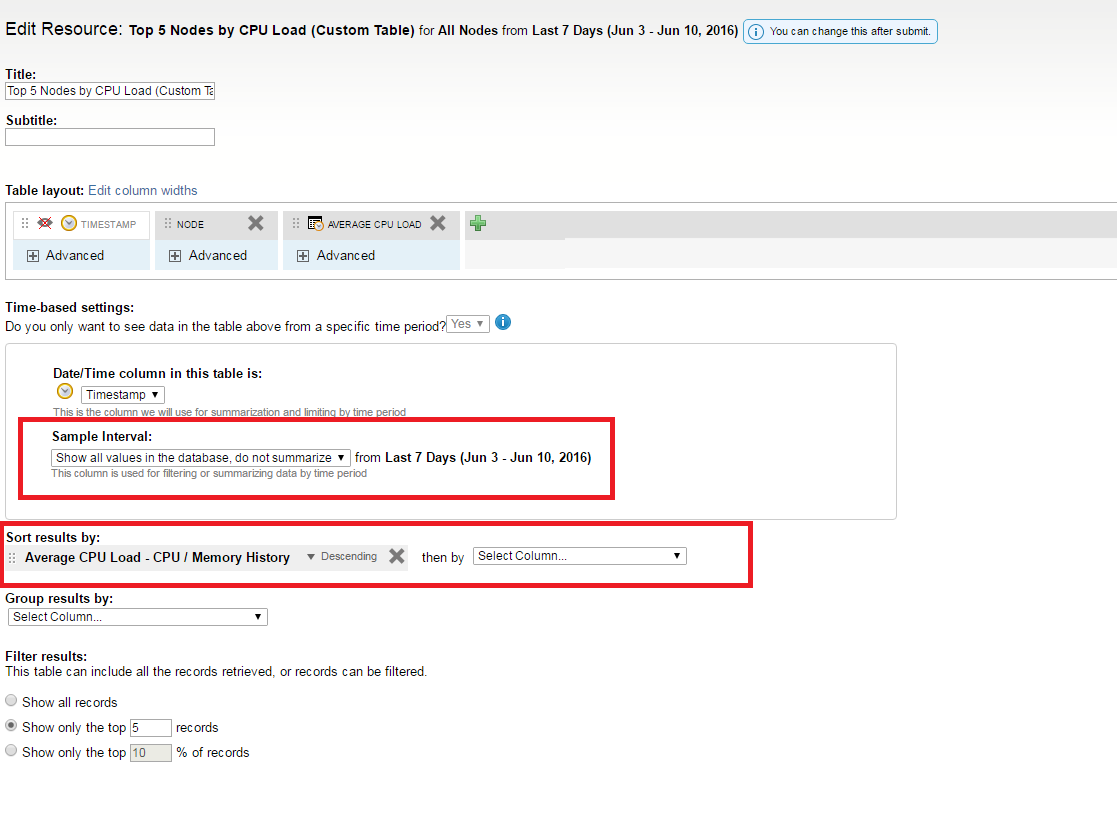

3. Set Sample Interval to Show all values in the database, do not summarize.
4. Remove Timestamp column from Sort results by section. and click Submit.
